Editing Text in Drawings
In-place Text Editing is one of the new features of ARES Commander 2015. With this new text editor, you can now edit texts like in a word processor.
1
00:00:08,840 –> 00:00:12,580
Create and edit text very easily in your drawings
2
00:00:12,580 –> 00:00:16,900
thanks to the tools offered by Ares Commander 2015.
3
00:00:16,900 –> 00:00:20,288
To edit a text, we can for example double-click
4
00:00:20,840 –> 00:00:22,420
and this editor opens.
5
00:00:22,680 –> 00:00:25,140
Its tools are similar to a word processor
6
00:00:25,620 –> 00:00:31,000
where we can select the text and convert it into uppercase or lowercase.
7
00:00:31,380 –> 00:00:36,100
We can even select several letters and convert to uppercase very easily.
8
00:00:39,000 –> 00:00:41,720
We can also select and change the color,
9
00:00:43,560 –> 00:00:47,320
convert to “Bold”, “Italic” or “Underlined”.
10
00:00:48,240 –> 00:00:51,40
We can also change the spacing between letters
11
00:00:51,220 –> 00:00:55,820
and even change the relation between width and height of each letter.
Copy and Pasting Text
12
00:00:58,970 –> 00:01:03,70
If we want to paste a text that we have created in another document,
13
00:01:03,400 –> 00:01:05,280
we can select & copy it.
14
00:01:05,640 –> 00:01:08,000
In this example from notepad.
15
00:01:09,100 –> 00:01:12,720
From the “Annotate” tab choose the command “NOTE”.
16
00:01:13,000 –> 00:01:16,640
We define the area where we will paste the text.
17
00:01:17,720 –> 00:01:22,480
Now we can use the key combination Control + V to paste.
18
00:01:23,360 –> 00:01:24,900
Or use this icon.
19
00:01:25,80 –> 00:01:27,760
If we now press the right button of the mouse,
20
00:01:28,60 –> 00:01:31,220
we can choose the “PASTE” command
21
00:01:31,229 –> 00:01:35,150
or the “PASTE SPECIAL” that allows us to use different filters.
22
00:01:35,780 –> 00:01:38,100
In this case we choose “PASTE”.
23
00:01:38,360 –> 00:01:41,140
Once the text is inserted, we can select
24
00:01:42,70 –> 00:01:43,889
and change the justification.
25
00:01:46,950 –> 00:01:49,590
And we can change the vertical space.
26
00:01:55,219 –> 00:02:00,759
Now we can position the cursor here and press Enter to create a new paragraph.
Separating Paragraphs
27
00:02:04,770 –> 00:02:08,289
We can further create a separation between paragraphs.
28
00:02:08,610 –> 00:02:11,630
If you like, you can stretch the text area
29
00:02:15,320 –> 00:02:18,150
and the text will be adjusted to the new size.
30
00:02:18,580 –> 00:02:22,200
We close with this button or by double clicking outside.
31
00:02:23,160 –> 00:02:25,740
The text will behave like a single entity.
32
00:02:26,100 –> 00:02:29,400
Let’s for example use the “MOVE” command,
33
00:02:33,480 –> 00:02:39,459
Ares Commander 2015 lets you add fractions and tolerances as part of the text.
34
00:02:39,880 –> 00:02:42,680
For this we use the command “NOTE”.
35
00:02:44,569 –> 00:02:48,409
We define the area where you place the text.
36
00:02:49,390 –> 00:02:54,809
To write the diameter symbol, we can combine the keys SHIFT
Adding Symbols
37
00:02:55,420 –> 00:02:59,179
and twice the % symbol, followed by the letter C.
38
00:02:59,460 –> 00:03:02,380
For the program we add the “PHI” symbol.
39
00:03:03,900 –> 00:03:06,500
Or we can use the drop-down menu
40

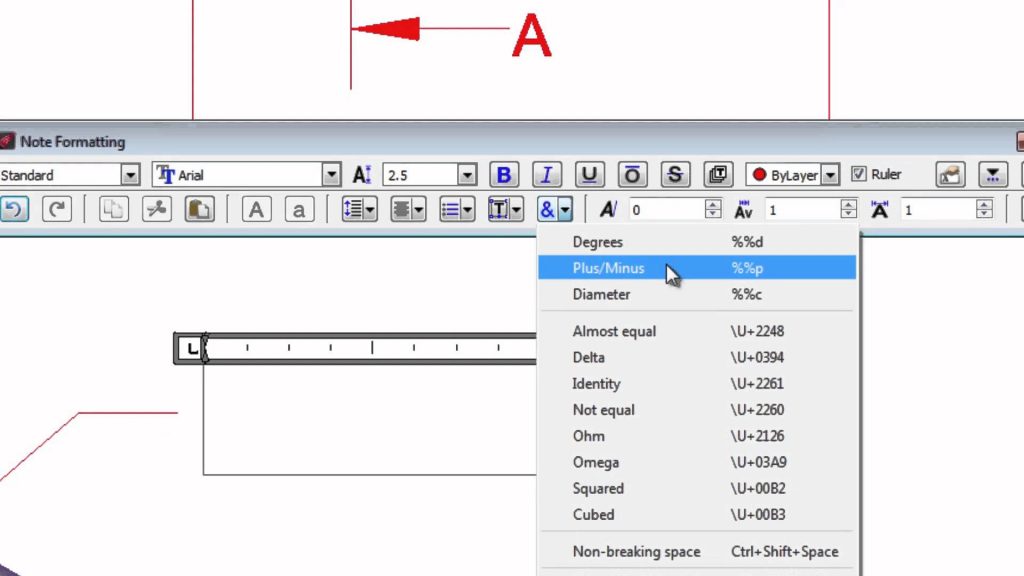

00:03:07,220 –> 00:03:14,960
where we have the options diameter, degree and even the +/- symbol,
41
00:03:15,960 –> 00:03:18,340
among other options.
42
00:03:21,740 –> 00:03:25,280
If we add a fraction, we can just write it this way.
43
00:03:29,680 –> 00:03:34,960
When we press the space key, the dialog box “AutoStack Defaults” opens.
44
00:03:36,560 –> 00:03:39,700
It allows us to define the look of this fraction.
45
00:03:39,940 –> 00:03:43,160
We can choose between horizontal or diagonal.
46
00:03:45,440 –> 00:03:48,400
If we want to change it, we can double click on the fraction
47
00:03:48,520 –> 00:03:53,820
and in the “STACK PROPERTIES” dialog we can change the values or the appearance of the fraction.
48
00:03:54,300 –> 00:03:59,20
We can, for example, choose the horizontal option, as we can see in the preview.
49
00:04:00,100 –> 00:04:02,859
We may change the scale of these numbers
50
00:04:06,540 –> 00:04:10,700
and even change the vertical position with respect to the text.
51
00:04:14,300 –> 00:04:16,360
If we want to add a tolerance
52
00:04:16,949 –> 00:04:19,879
we can select this fraction with double click.
53
00:04:20,480 –> 00:04:24,520
We select the type and then change the upper and lower values.
54
00:04:29,170 –> 00:04:35,910
If, at some point, we need to remove the “fractional” appearance or a tolerance we have in a text,
55
00:04:36,740 –> 00:04:38,60
we can select …
56
00:04:38,420 –> 00:04:40,500
… and then click this button.
57
00:04:42,540 –> 00:04:46,120
If we write two numbers separated by this symbol
58
00:04:46,800 –> 00:04:48,740
and press the space key,
59
00:04:49,580 –> 00:04:53,880
this dialog opens where you can define the appearance of tolerances.
60
00:04:57,940 –> 00:05:04,40
There are many options offered by ARES Commander 2015 to create and edit texts.
61
00:05:04,580 –> 00:05:09,000
To learn about them in depth we can use the “HELP” icon here.
62
00:05:10,520 –> 00:05:14,640
We will find step by step all the options offered by the software.
Thanks for listening, and don’t miss our FREE trial of ARES Commander 2015, on our website, www.graebert.com
